Things You Don't Need to Know about Tanzu Platform — Capabilities/Profiles
· 17 min read
I'll be writing up the content about the latest product, Tanzu Platform, that felt too maniacal to blog about. As a caveat: everything from here on is stuff you "don't need to know".
This time, I explain Capabilities / Profiles. This article assumes an understanding of KCP/Kine.
APIs available in a Space, Capabilities and Profiles

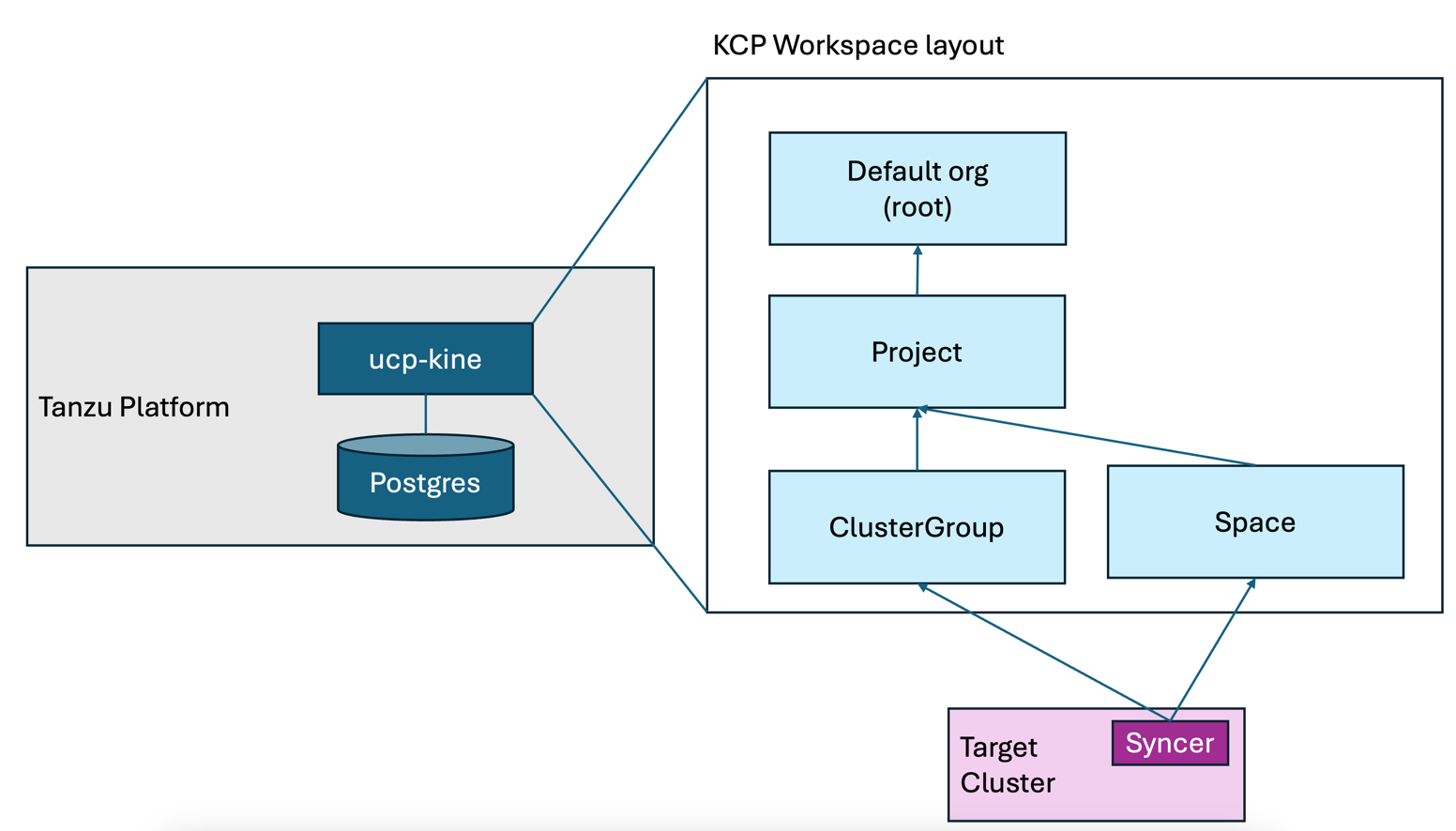

As shown in the picture below from KCP/Kine, resources defined in a Space or ClusterGroup are reflected to the opposite k8s via the Syncer.
The list of available APIs here can be checked by switching workspaces and running kubectl api-resources.
The point is that you cannot run just anything from a Space. So what do you do when an API is missing?
For ClusterGroups, I have yet to find a way to customize the API list. For Spaces, however, customization is possible. And that brings us to what I personally consider the gauntlet of understanding TP — the headquarters of "what on earth is this" — Capabilities and Profiles.
This is what you can see in the TP GUI:
Explained with KCP concepts in mind, they provide:
- Profiles : the way to add APIs to a Space workspace
- Capabilities : based on Carvel's Package Management, responsible for installing and defining APIs; referenced by Profiles
Let's look a little closer.
Using Capabilities and Profiles to manipulate k8s Services from a Space
From a regular Space workspace, the core/v1 Service commonly used in Kubernetes is not defined. The following command fails, as expected:
% tanzu space use
# pick any space
% kubectl get svc
error: the server doesn't have a resource type "svc"
Here we'll use a Profile and Capabilities to control K8s Services from a Space, attempting to understand Capabilities along the way.
Registering a home-made Capability
With zero official support, we'll register a home-made Capability with Tanzu Platform. The package information lives here:
Code: https://github.com/mhoshi-vm/tp-k8s-service-from-space
Container image: https://github.com/mhoshi-vm/tp-k8s-service-from-space/pkgs/container/tp-k8s-service-from-space
These are built on Carvel's Package Management, but that strays from the theme so I'll skip the explanation.
Switch to TP and enter the project workspace first:
tanzu project use tpadmin
Now register the home-made package:
tanzu package repository add tp-k8s-service-from-space --url ghcr.io/mhoshi-vm/tp-k8s-service-from-space:latest
It's kubectl, but you can confirm the registration:
% kubectl get pkgr
NAME AGE DESCRIPTION
tap-saas-sha256-e989369 14d Ready
tp-k8s-service-from-space 4s Ready
% kubectl get package | grep "k8s-service.*0.0.1"
k8s-service-capability.tanzu.japan.com.0.0.1

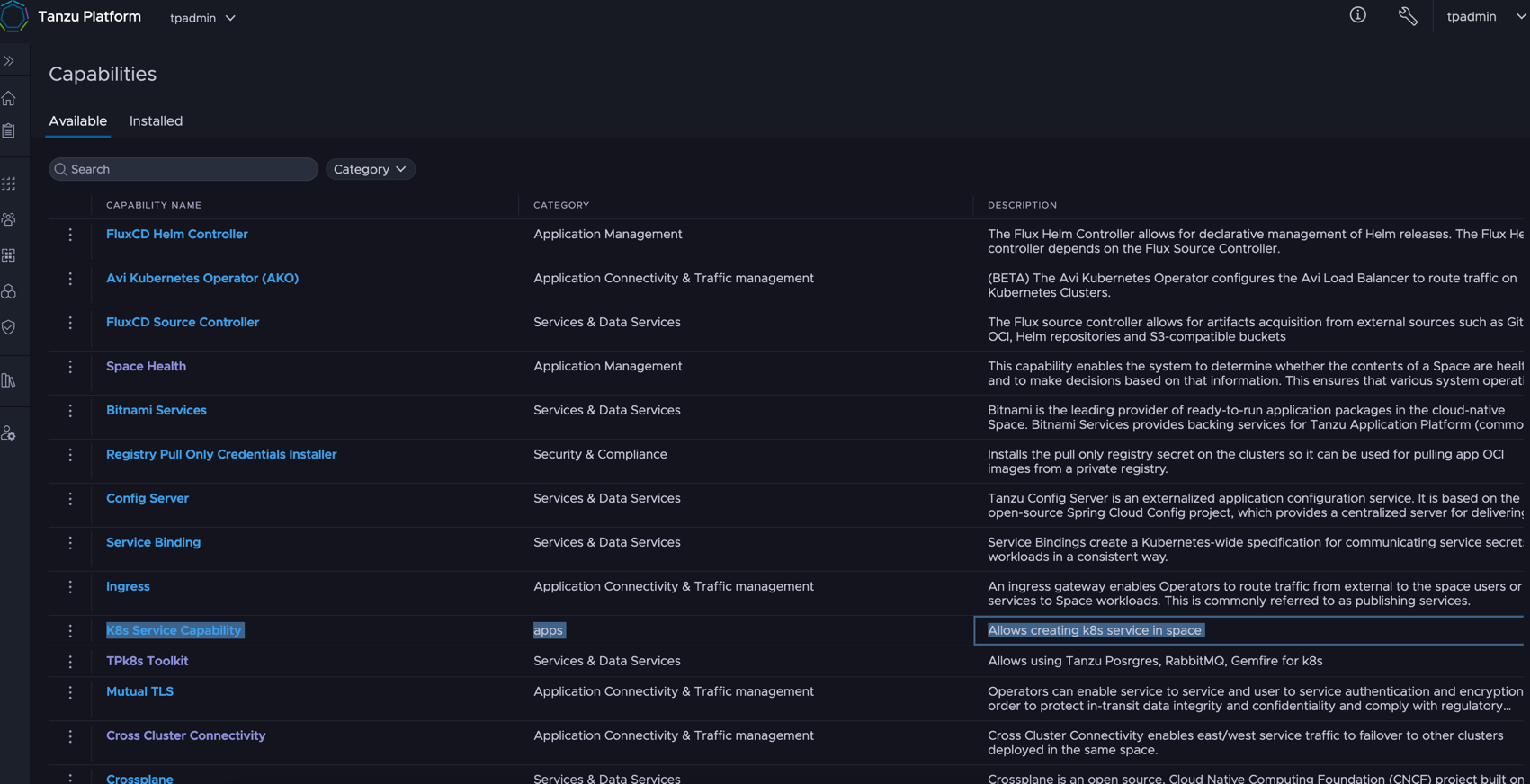

In this state, looking at [Spaces] > [Capabilities] > [Available] in the TP GUI, you can see one named K8s Service Capabilites.
Let's look at the code:
This information is reflected into the TP GUI — registered as a Capability — by referencing the JSON in the kind: Package annotations.capability.tanzu.vmware.com/provides.
Conversely, without this annotation it never appears in the TP GUI. Also important: groupVersionKinds lists which APIs you want exposed to the Space.
Not needed in this case, but when adding 3rd-party APIs, you also define the installation of required controllers and the like in the template.
Installing the home-made Capability onto a ClusterGroup
Install the Capability onto a ClusterGroup. Switch to the ClusterGroup workspace with the command below. You'll be prompted to pick which ClusterGroup to install to.
tanzu operations clustergroup use
After switching workspaces, prepare the home-made Capability install with the command below.
You might think it's the same command as under tanzu project use, but at the time of writing no Syncer is defined for the Project workspace, so it never reaches the actual opposite K8s.
Running it on the ClusterGroup is what reflects it to the actual opposite K8s.
tanzu package repository add tp-k8s-service-from-space --url ghcr.io/mhoshi-vm/tp-k8s-service-from-space:latest
At the time of writing the output after running looks like the following, but you can assume it worked fine:
% kubectl get pkgr
NAME AGE DESCRIPTION
tp-k8s-service-from-space 18s Not Ready: the server could not find the requested resource (get packages.data.packaging.carvel.dev)
Now select K8s Service Capabilites in [Spaces] > [Capabilities] > [Available]:

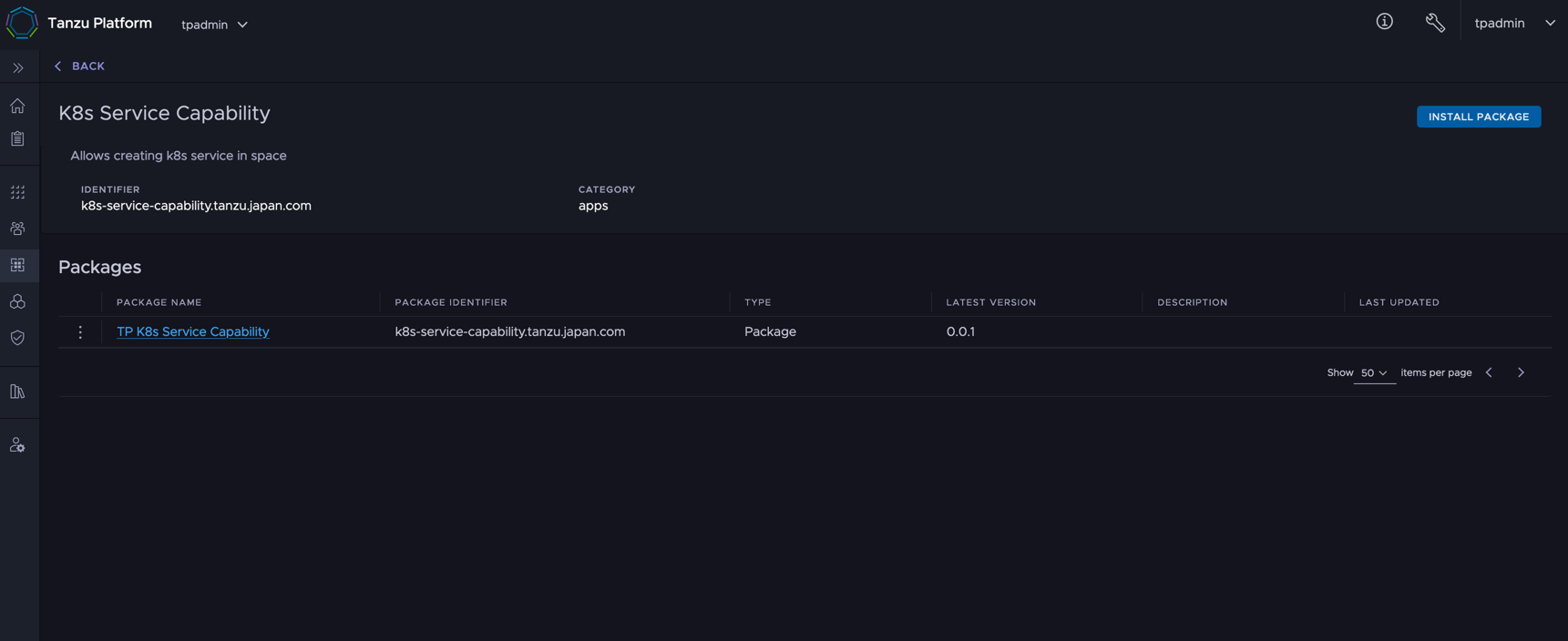

Run Install Package at the top right:

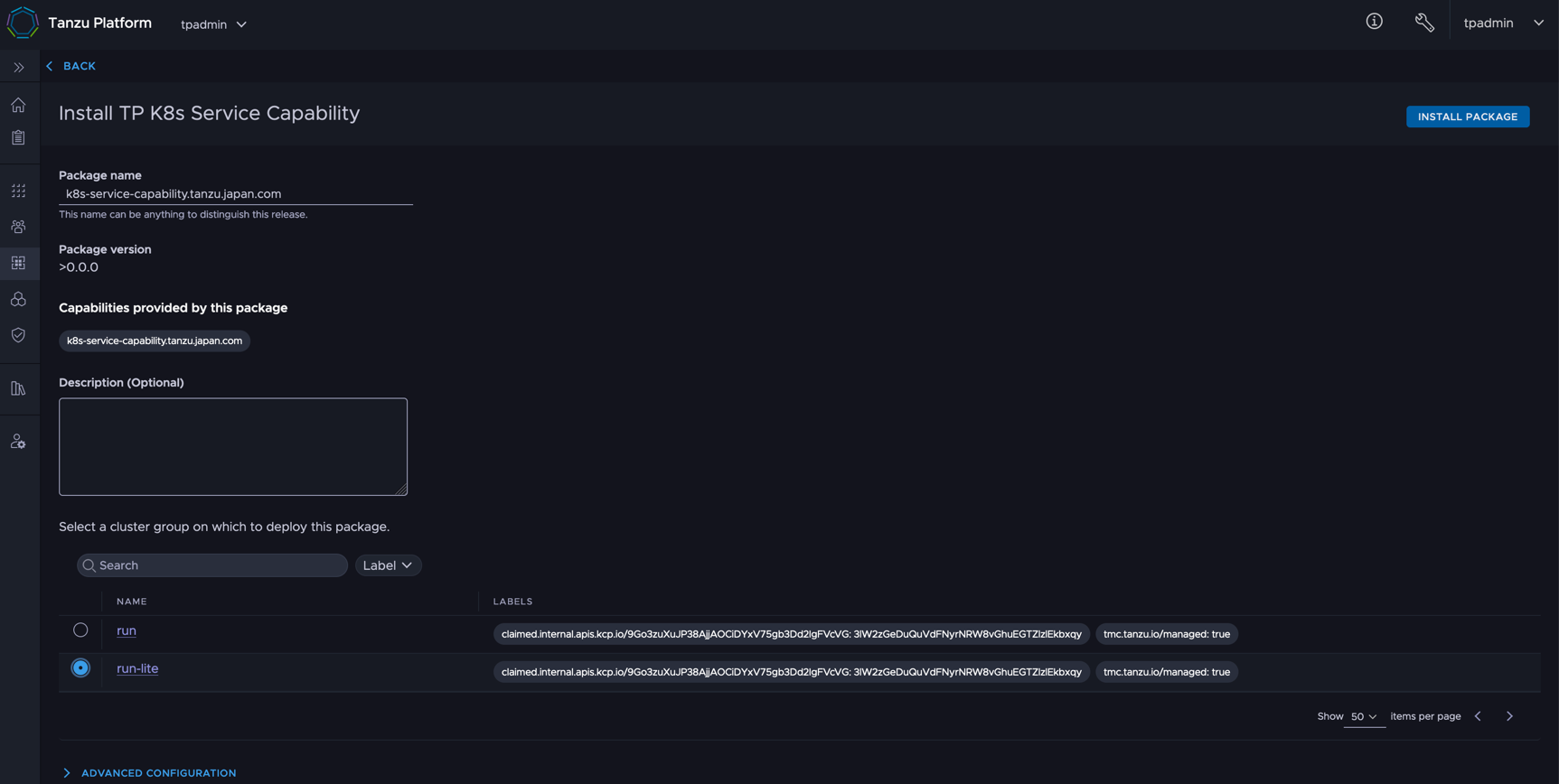

At "Select a cluster group on which to deploy the package", pick the target cluster and run Install Package:
Creating the Profile
To make the API visible to Spaces, create a Profile that includes the Capability installed above. From [Spaces] > [Profiles], select [Create Profiles].

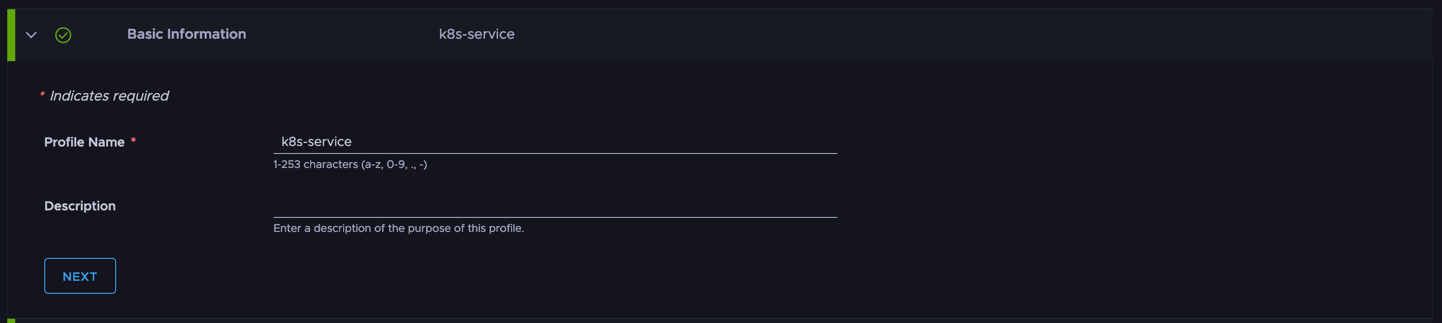

Any name works; here I use k8s-service.

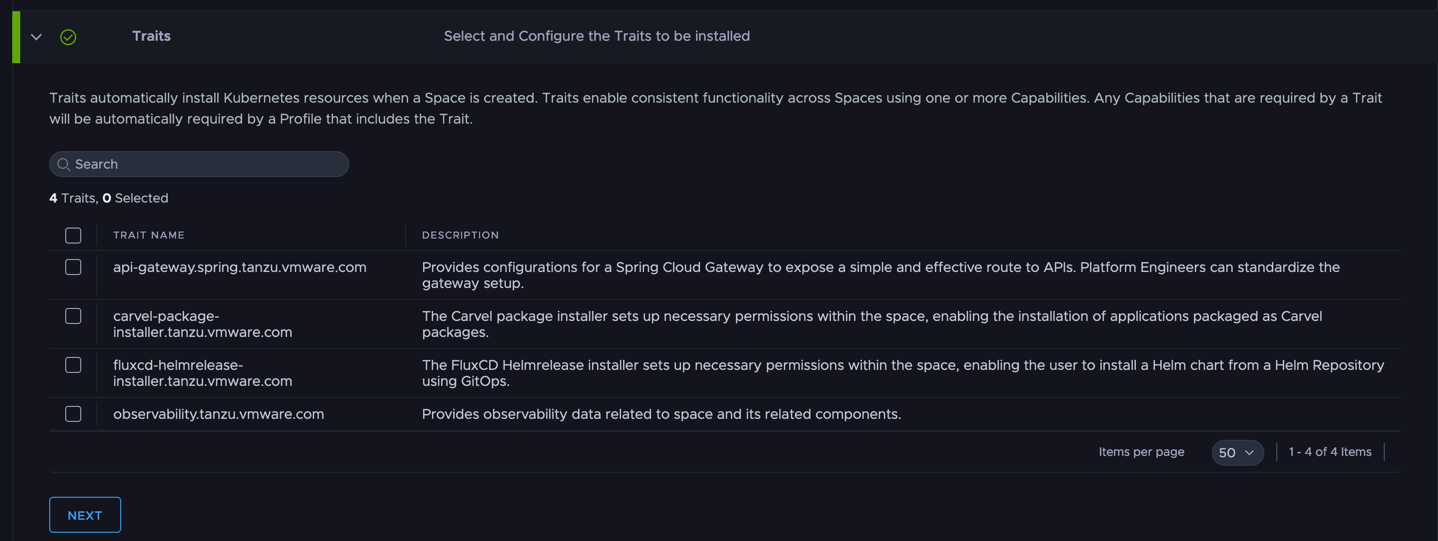

Ignore Traits for now. Maybe a separate article.

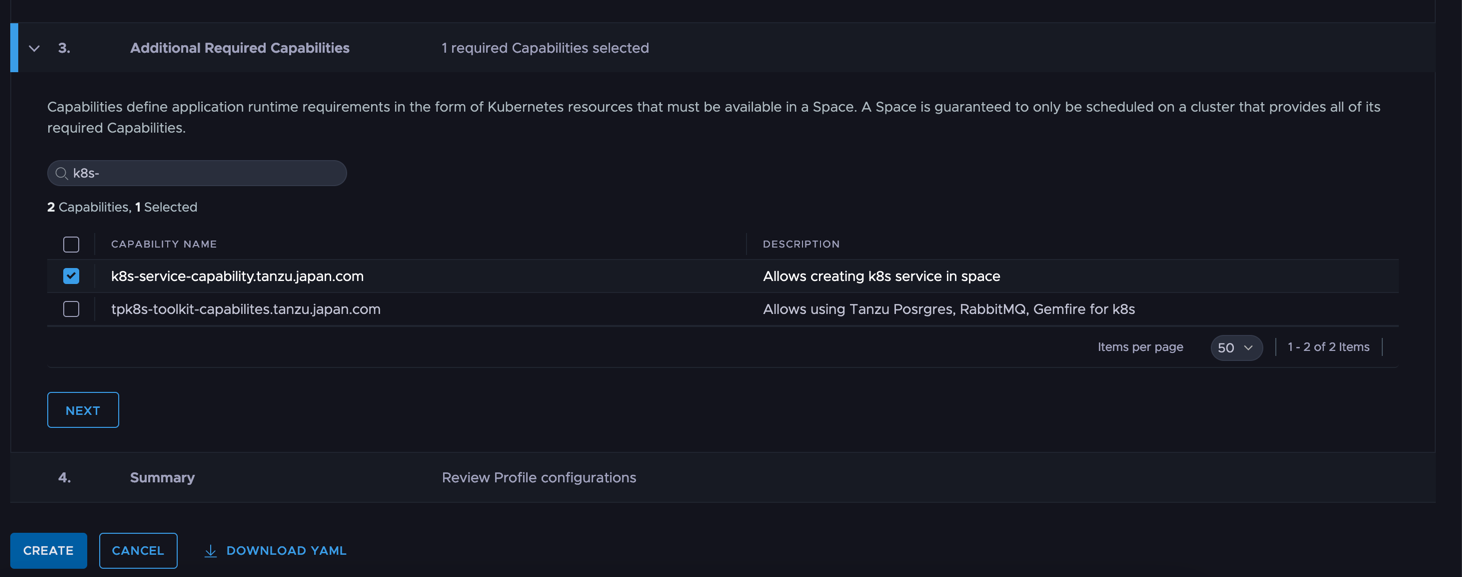

Under Capabilities, register the home-made Capability. Then run Create.
Creating the Space / creating the K8s Service
The preparations are finally done, so let's create a Space and an actual k8s service.

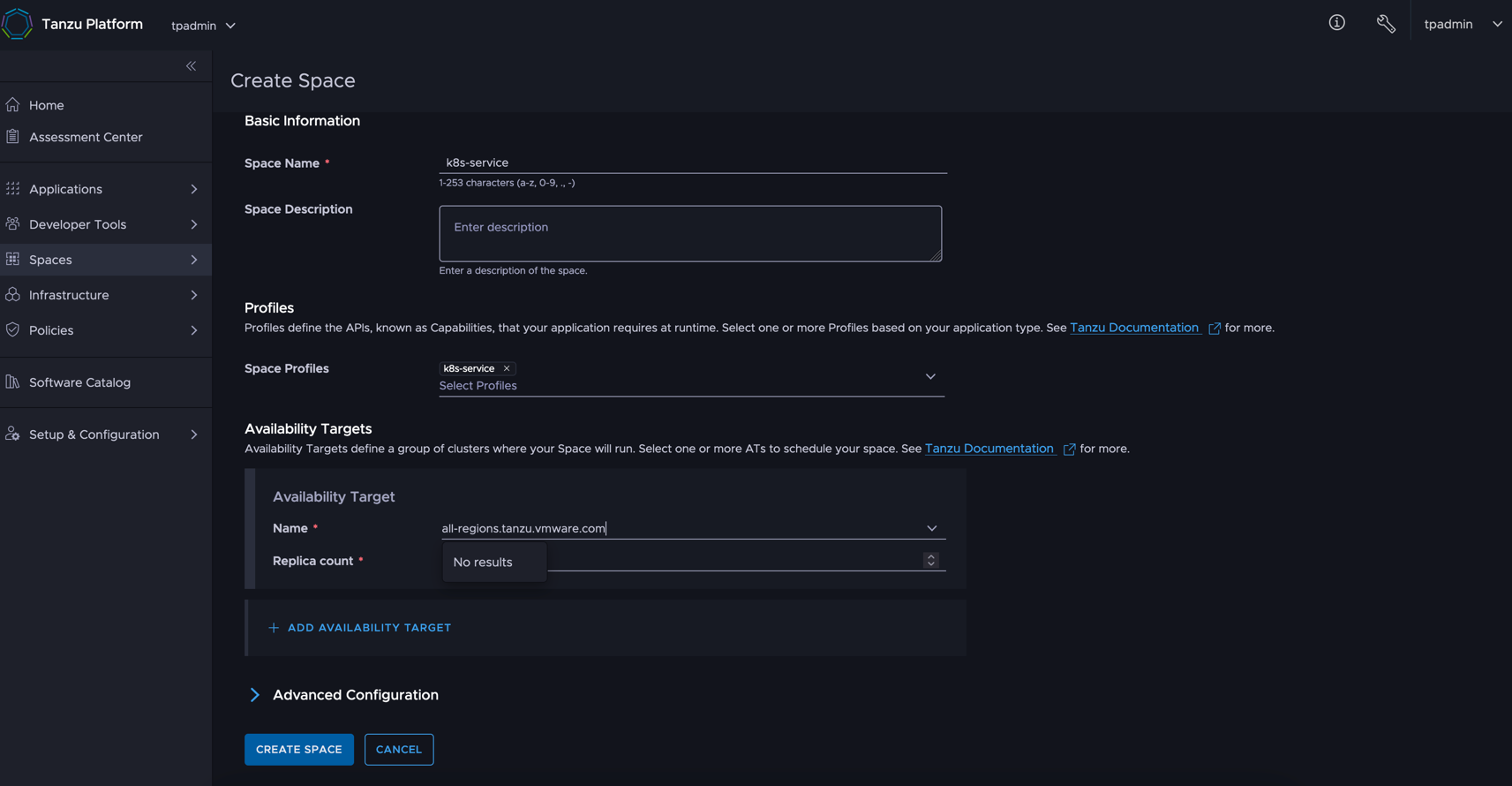

Select [Spaces] > [Overview] > [Create Space]. For Space Profiles, choose the Profile created above. AvailabilityTarget can be the usual setting.
From here it's CLI. Switch to the space workspace:
tanzu space use k8s-service
Peek at the API list. You'll see Services APIs lined up that normally don't exist:
% kubectl api-resources
NAME SHORTNAMES APIVERSION NAMESPACED KIND
configmaps v1 true ConfigMap
events v1 true Event
limitranges v1 true LimitRange
resourcequotas v1 true ResourceQuota
secrets v1 true Secret
serviceaccounts v1 true ServiceAccount
services svc v1 true Service <<< note <<<<<<<<<<<<<<<<<<<<<<<<<<<<
localsubjectaccessreviews authorization.k8s.io/v1 true LocalSubjectAccessReview
selfsubjectaccessreviews authorization.k8s.io/v1 false SelfSubjectAccessReview
selfsubjectrulesreviews authorization.k8s.io/v1 false SelfSubjectRulesReview
subjectaccessreviews authorization.k8s.io/v1 false SubjectAccessReview
events events.k8s.io/v1 true Event
clusterrolebindings rbac.authorization.k8s.io/v1 false ClusterRoleBinding
clusterroles rbac.authorization.k8s.io/v1 false ClusterRole
rolebindings rbac.authorization.k8s.io/v1 true RoleBinding
roles rbac.authorization.k8s.io/v1 true Role
syncresourcesets srs ucp.tanzu.vmware.com/v1 true SyncResourceSet
Now let's create a Type: LoadBalancer k8s service:
kubectl create svc loadbalancer hoge --tcp=8080:8080
It should complete after a moment. On plain k8s, creating a Type: LoadBalancer shows the endpoint connection info in .status.loadBalancer — but here nothing is shown:
% kubectl get svc hoge -o yaml
apiVersion: v1
kind: Service
metadata:
annotations: {}
creationTimestamp: "2025-01-21T08:44:59Z"
generation: 1
labels:
app: hoge
name: hoge
namespace: default
resourceVersion: "1426062"
uid: eafa02f8-3042-41f8-bd2b-35338b0de673
spec:
ports:
- name: 8080-8080
port: 8080
protocol: TCP
targetPort: 8080
selector:
app: hoge
type: LoadBalancer
status:
loadBalancer: {} <<< note <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
In TP, statuses on the opposite cluster can be seen via the Sync Resource Set (SRS):
% kubectl get srs -o yaml
Looking at the actual output, the Type: LoadBalancer execution result and endpoint are displayed here:
status:
...
data:
tp-wk1:
k8s-service-7f7ff58bf8-mmr9t:
hoge:
results:
.metadata.annotations:
agent.tanzu.vmware.com/clusterpath: root:c957a32b-b30c-21f7-95e1-f22cffe0eecf:dc7d70e1-d928-4bb2-88f5-ac0fc25c8524:k8s-service
agent.tanzu.vmware.com/upstream-namespace: default
agent.tanzu.vmware.com/upstream-uid: eafa02f8-3042-41f8-bd2b-35338b0de673
kcp.io/cluster: j1f1tjgos93ryang
.metadata.creationTimestamp: "2025-01-21T08:45:40Z"
.metadata.generation: 1
.metadata.labels:
agent.tanzu.vmware.com/syncer-selector: txbta4fvbvkhprrg7xb7ejeo6owkcmmhaeqa3jukk7klxfspxtla....h
app: hoge
.metadata.name: hoge
.metadata.namespace: k8s-service-7f7ff58bf8-mmr9t
.metadata.resourceVersion: "10359689"
.metadata.uid: 942dd0f2-27b1-4dd0-8f5f-5827891c70f4
.status:
loadBalancer:
ingress:
- ip: 192.168.251.49 <<< note <<<<<<<
ipMode: VIP
If you have the opposite K8s kubeconfig, you can confirm a Type: LoadBalancer was created showing the same IP address:
% export KUBECONFIG=<Deploy Cluster Kubeconfig>
% kubectl get svc -o yaml -n k8s-service-7f7ff58bf8-mmr9t
apiVersion: v1
items:
- apiVersion: v1
kind: Service
metadata:
annotations:
agent.tanzu.vmware.com/clusterpath: root:c957a32b-b30c-21f7-95e1-f22cffe0eecf:dc7d70e1-d928-4bb2-88f5-ac0fc25c8524:k8s-service
agent.tanzu.vmware.com/upstream-namespace: default
agent.tanzu.vmware.com/upstream-uid: eafa02f8-3042-41f8-bd2b-35338b0de673
kcp.io/cluster: j1f1tjgos93ryang
creationTimestamp: "2025-01-21T08:45:40Z"
finalizers:
- service.kubernetes.io/load-balancer-cleanup
generation: 1
labels:
agent.tanzu.vmware.com/syncer-selector: txbta4fvbvkhprrg7xb7ejeo6owkcmmhaeqa3jukk7klxfspxtla....h
app: hoge
name: hoge
namespace: k8s-service-7f7ff58bf8-mmr9t
resourceVersion: "10359689"
uid: 942dd0f2-27b1-4dd0-8f5f-5827891c70f4
spec:
allocateLoadBalancerNodePorts: true
clusterIP: 10.96.168.56
clusterIPs:
- 10.96.168.56
externalTrafficPolicy: Cluster
internalTrafficPolicy: Cluster
ipFamilies:
- IPv4
ipFamilyPolicy: SingleStack
ports:
- name: 8080-8080
nodePort: 32057
port: 8080
protocol: TCP
targetPort: 8080
selector:
app: hoge
sessionAffinity: None
type: LoadBalancer
status:
loadBalancer:
ingress:
- ip: 192.168.251.49 <<< note <<<<<<<
ipMode: VIP
kind: List
metadata:
resourceVersion: ""
This is a very simple K8s Service example, but once you understand this mechanism, you can keep adding missing APIs to a space for automation purposes. That said — as the title says, this is stuff you "don't need to know": development is proceeding so that customers fundamentally don't need such customization, so it's best to customize in moderation.
That was the explanation of Capabilities/Profiles.
