Concourse and Github Compatibility Notes
· 4 min read
A summary of Concourse and Github
Introduction
This is a summary of how well Github works with Concourse when using Concourse as your main CI tool. I'll keep updating it bit by bit as I verify things.
Trigger
Monitoring a Github repository and triggering on commits is easy.
By adding trigger: true inside Jobs, Concourse runs the task the moment it detects an update.
resources:
- name: upstream-source-code
type: git
source:
uri: https://github.com/<project>/<repo>
branch: <branch>
jobs:
- name: Code updated
plan:
- get: upstream-source-code
trigger: true
- task: something
// Do Something
Push
This is also easy.
The point is to put values into outputs, which ultimately results in a push to the repository. See:
https://github.com/concourse/git-resource#out-push-to-a-repository
The private_key used for pushing to Github and the like should probably be turned into variables backed by an external credential manager:
https://concourse-ci.org/creds.html
resources:
- name: source-code
type: git
source:
uri: https://github.com/<project>/<repo>
branch: <branch>
private_key: ((sourceKey))
private_key_user: ((sourceUser))
jobs:
- name: merge-upstream
plan:
- get: source-code
- task: commit-push
config:
platform: linux
image_resource:
type: docker-image
source:
repository: alpine/git
tag: latest
inputs:
- name: source-code
outputs:
- name: source-code
run:
path: /bin/bash
args:
- -c
- |
set -x
cd source-code
git config --global user.name "concourse"
git config --global user.email "concourse@local"
// Modify Code
git add .
git commit -m "Commit and Push"
Pull Request
Not an official one, but the following resource seems to be the equivalent:
https://github.com/telia-oss/github-pr-resource
Status Badge
It exists.
Often included in Readmes, this feature displays the latest status of a specific job.

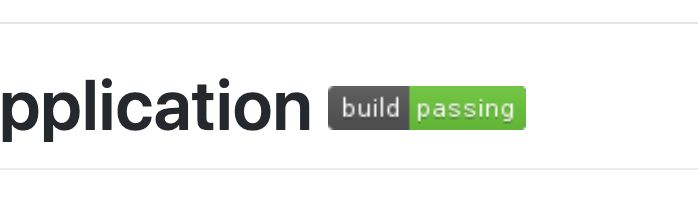

For example, the build/passing badge included in the Readme of Spring Petclinic:
I assumed this feature surely wouldn't exist, but an API is properly provided. As introduced in the API documentation below, you can pick up not only the state of the whole pipeline but also the status of each Job:
